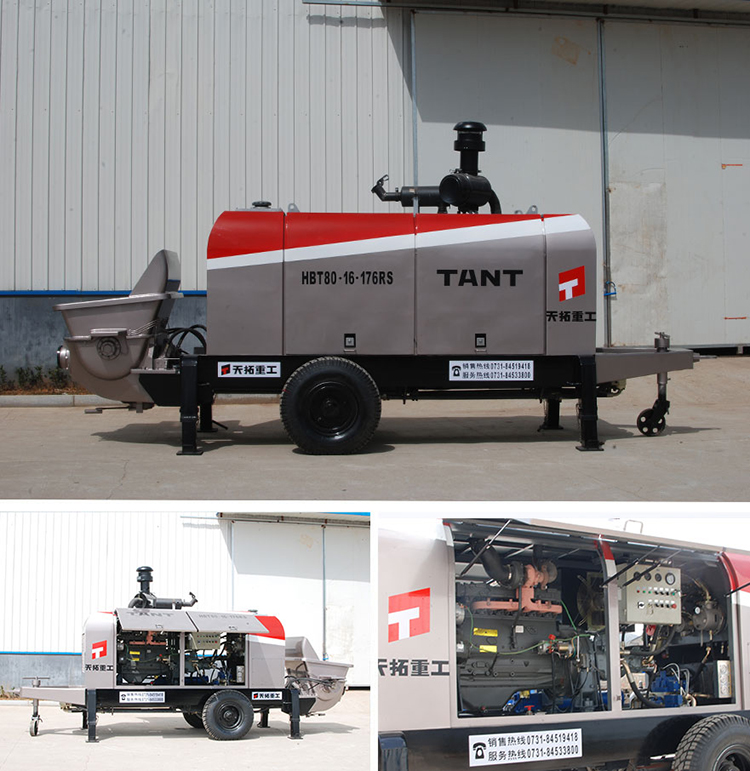

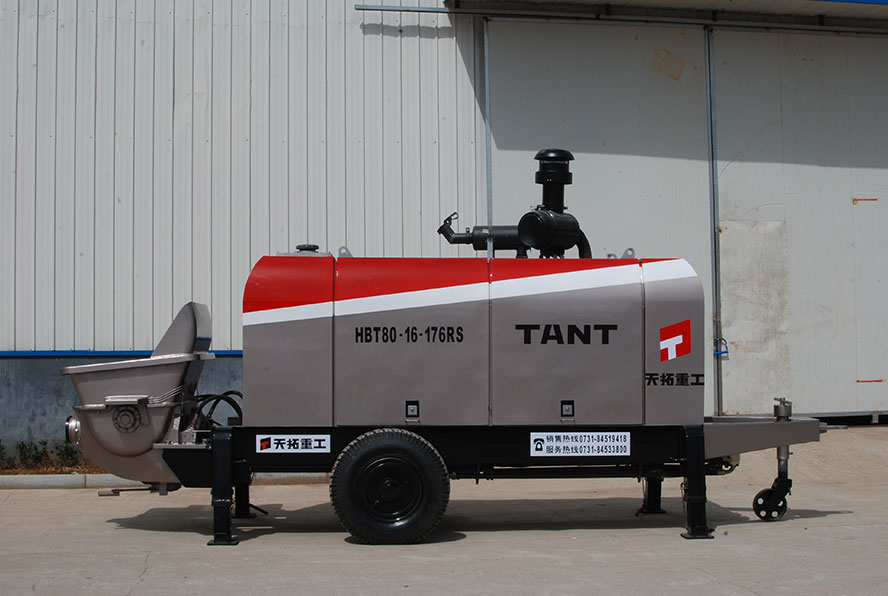

Tiantuo diesel concrete pump, diesel trailer concrete pump

Short Description:

1. Product highlights1. Fuel saving, strong power and long service life. The who...


Description

Specifications

1. Fuel saving, strong power and long service life. The whole machine adopts intelligent operation, and it has a different working environment from the motor pump (working in a working environment without power supply). Excellent pumping capacity, faster pumping speed, less pipe blocking phenomenon, and higher cost performance.

2. The hydraulic system enables the pumping and distribution valve reversing to have the ability to "increase speed and force" in each process, effectively reducing the probability of pumping pipe blocking, improving pumping stability, and enhancing adaptability to concrete materials.

3. The reversing device has high-pressure buffering working performance, which makes the S valve swing more powerful, avoids impacting the S valve, and significantly reduces the possibility of being stuck due to poor concrete materials.

4. The lubrication system has a pressurization function, which can effectively increase the pressure of the automatic lubrication system, avoid blockage of the lubricating oil channel, and improve the reliability of work.

5. The accumulator automatically unloads when pumping stops, and can maintain normal pumping even when damaged, ensuring system reliability and making maintenance work safer.

6. The accessories have good versatility, strong interchangeability, convenient procurement, and low maintenance cost.


Diesel concrete pump model parameters
AttributesHBT90Y 1614 130RSHBT90Y 161RSHBT90Y 18  176RS
Maximum theoretical concrete delivery volume (m3/h)88/4684/6084/46
Maximum pumping pressure range (mpa)7~1311~1611~16
Speed (r/min)230023002300
Engine model226BBF6M1013C7BD226B
Hydraulic system pressure (Mpa)323232
Power (KW)130161176
Concrete delivery cylinder diameter/row (mm)200/1600200/1600200/1600
Maximum theoretical delivery distance (vertical/horizontal) (m)270/1200320/1380320/1380
Overall dimensions (length x width x height) (mm)6600x2160x28006600x2160x28006600x2160x2800
Machine weight (kg)640066006600
