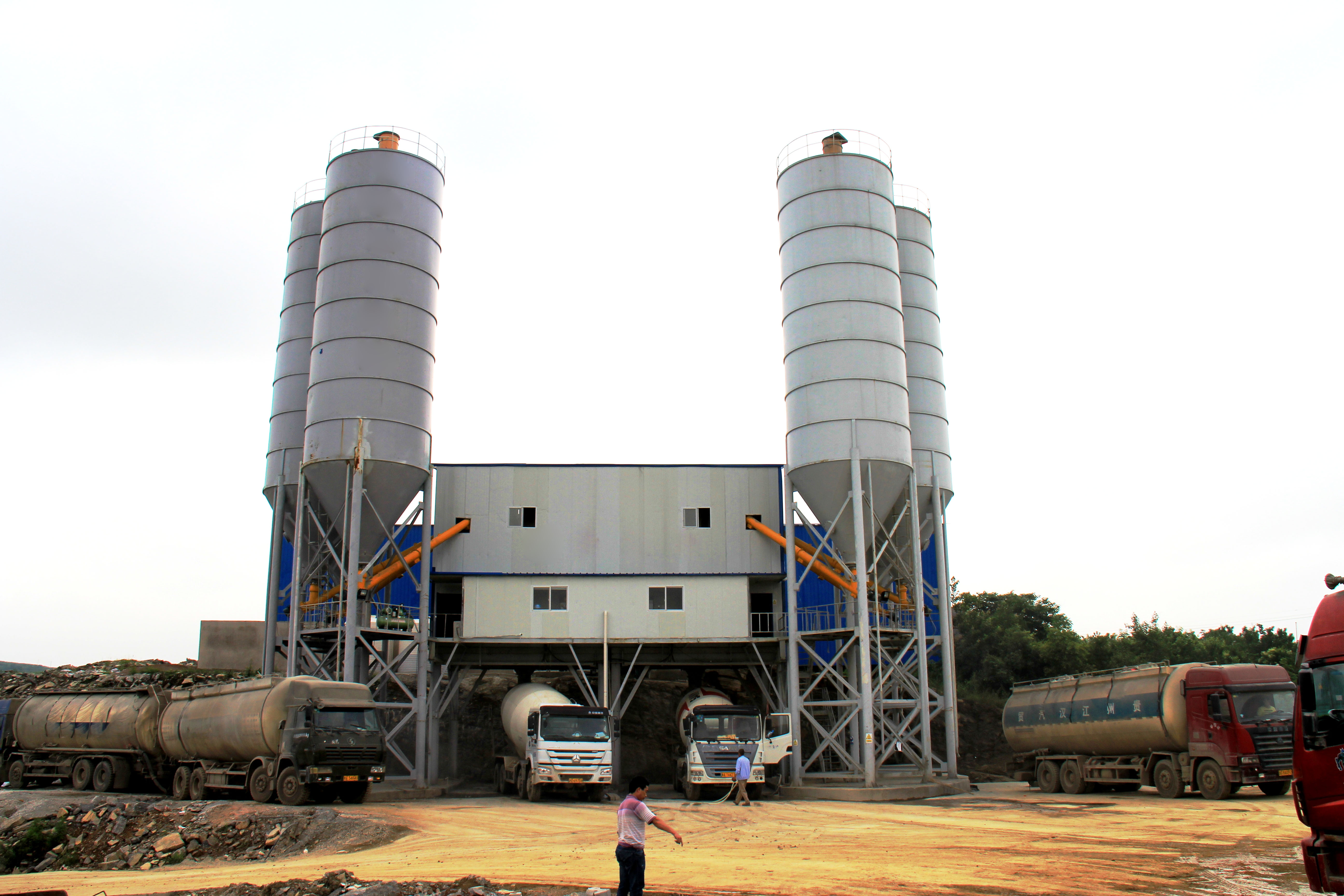

HZS series standard concrete 180 mixing station
The main supporting parts are all well-known domestic and foreign brands, stable and reliable, with overall modular structure design, more convenient installation and removal, the control system uses touch screen and computer synchronous production management control system, full automatic, semi-automatic, manual three working modes, making production control more comfortable; the non-stop power supply system comprehensively checks the equipment production status and report classification summary query, can customize production data, can be checked in the cloud, remote service. This series of mixing stations is the best ideal equipment for large and medium-sized construction, hydropower, highways, ports, bridges, airports and large prefabricated products factories and standard concrete manufacturers.
| Model | HZS180 |
| Theoretical productivity (m3/h) | 180 |
| Mixer model | JS3000 |
| Mixer motor power (KW) | 2*55 |
| Cycle period (S) | 60 |
| Mixer discharge capacity (L) | 3000 |
| Maximum aggregate particle size (mm) | 80 |
| Powder bin capacity (T) | 4X200 |
| Batcher batching capacity (L) | 4800 |
| Aggregate bin capacity (m3) | 4x25 |
| Aggregate type | 4 |
| Aggregate belt conveyor productivity (T/h) | 700 |
| Maximum screw conveyor productivity (T/h) | 80 |
| Discharging height (m) | 4.2 |
| Installed capacity (KW) | 250 |
| Aggregate weighing range and accuracy (kg) | (1200-4000)±2% |
| Cement weighing range and accuracy (kg) | (540-1800)±2% |
| Fly ash weighing range and accuracy (kg) | (300-1000)±2% |
| Water weighing range and accuracy (kg) | (240-800)±1% |
| Admixture weighing range and accuracy (kg) | (30-100)±1% |
