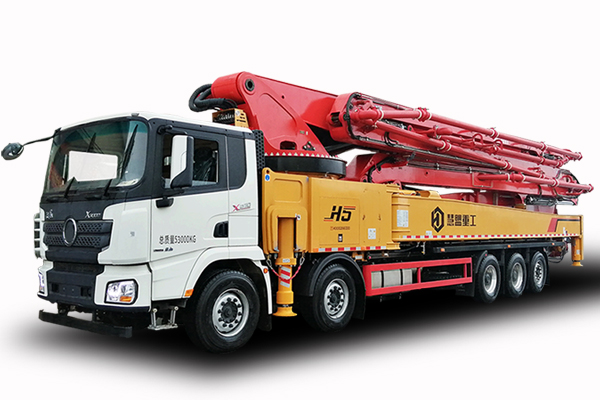

HuiMeng 70m concrete pump truck
Huimeng five-bridge 70m National Five chassis pump truck is a pump truck with a wide range of materials, simple and reliable operation and a high degree of automation.
Hunan Huimeng Heavy Industry Technology Co., Ltd., formerly Changsha Huimeng Heavy Industry Machinery Co., Ltd., was registered in 2011. Its headquarters is located in Ganshan Town, Changsha County, Changsha City, Hunan Province. It is a national high-tech enterprise. Huimeng Heavy Industry has always adhered to the concept of innovative service, and has been deeply engaged in end users for 17 years, always bringing customers unexpected touches. It is a company specializing in the research and development, manufacturing, sales, maintenance, leasing and wholesale of parts for high-end concrete engineering machinery. Huimeng Heavy Industry adheres to high standards of product production and service quality, and has core patented technologies for international cutting-edge concrete machinery manufacturing. The company currently has a full range of high-end concrete pump trucks from 37 meters to 88 meters, which can meet the customized needs of different users. R&D The company's R&D base is located in Changsha, with many R&D and design personnel in structure, mechanics, hydraulics, etc. At the same time, it cooperates with Hunan Institute of Technology, Central South University Research Institute and multiple R&D teams to jointly develop various high-end technology products.
Products Customized products mainly include 25-88m concrete pump truck series, concrete mixer truck series, concrete mixing station, high-end concrete pump series, fine stone concrete pump and ultra-high pressure vehicle-mounted concrete pump, vehicle-mounted mixing pump, mixing pump, industrial special pump, emergency drainage rescue equipment and other high-quality products. We continuously improve product design, process flow and quality control to enhance product competitiveness. At the same time, we can develop and customize intelligent engineering machinery in subdivided fields.
Model | HMG5545THB-70 | ||
Vehicle parameters | Overall length | 16720mm | |
Overall width | 2550mm | ||
Overall height | 4000mm | ||
Weight | 54000kg | ||
Boom leg parameters | Vertical height of boom | 69.5m | |
Horizontal length of boom | 65.6m | ||
Vertical depth of boom | 51.8m | ||
Minimum unfolded height | 16.8m | ||
First boom | Length | 13735mm | |
Corner | 90° | ||
Second boom | Length | 10615mm | |
Corner | 180° | ||
Third boom | Length | 10225mm | |
Corner | 180° | ||
Fourth boom | Length | 11500mm | |
Corner | 235° | ||
Fifth boom | Length | 11000mm | |
Corner | 180° | ||
Sixth boom | Length | 8420mm | |
Corner | 200° | ||
Turntable rotation angle | ±270° | ||

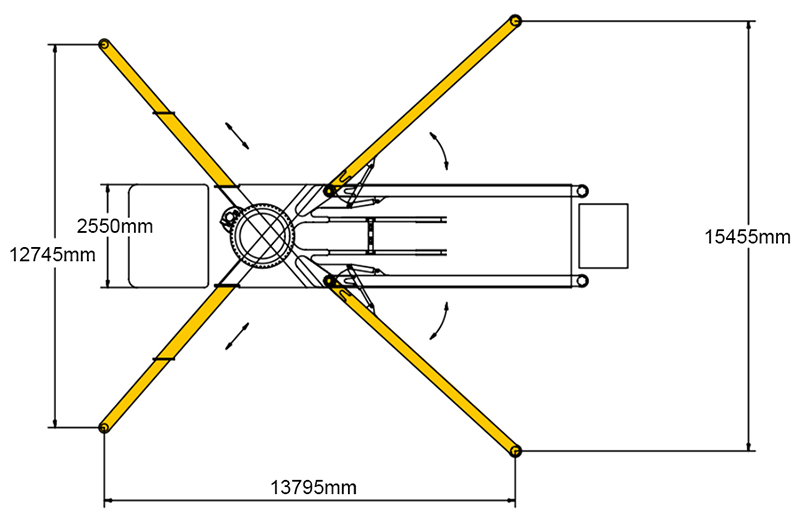

Front outrigger width | 12745mm | ||
Rear outrigger width | 15455mm | ||
Pumping System Parameters | heoretical concrete displacement | 180m3/h | |
Theoretical pumping pressure | Low pressure | 8.2Mpa | |
High pressure | 12Mpa | ||
Theoretical pumping times | 28 times/minute | ||
Inner diameter of delivery cylinder | 260mm | ||
Stroke of delivery cylinder | 2200mm | ||
Hydraulic system | Open hydraulic control | ||
System oil pressure | 32Mpa | ||
Oil tank capacity | 1000L | ||
Water tank capacity | 700L | ||
Diameter of delivery pipe | 125mm | ||
Length of end hose | 3m | ||
Diameter of end hose | 125mm | ||
Chassis parameters | Chassis model | SX5548XDCZ2 | |
Engine model | WP 13.510E62 | ||
Engine power | 375KW/1900rpm | ||
Emission standard | National VI | ||
Fuel tank capacity | 400L chassis + 500L independent fuel tank | ||
Displacement | 12.540L |
