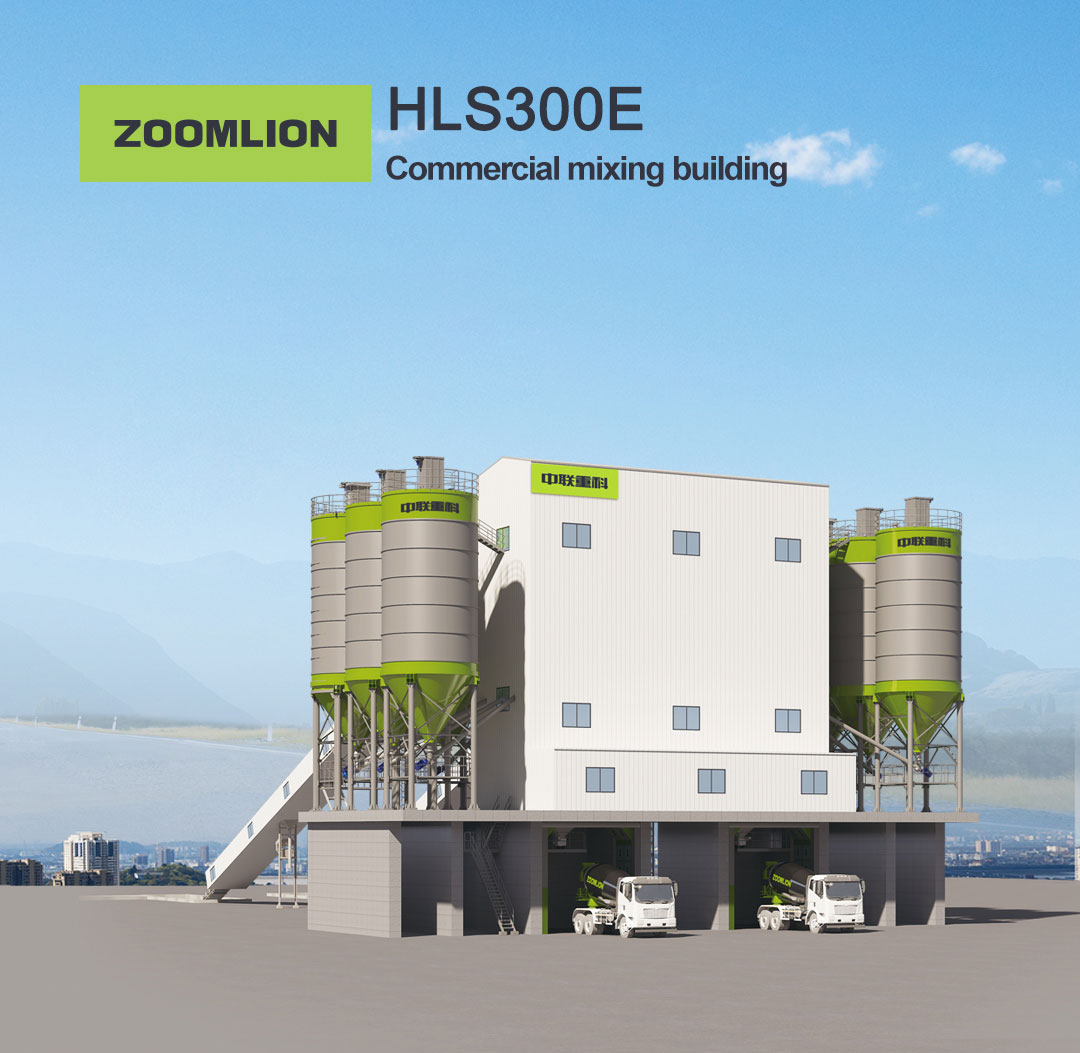

ZOOMLION  HLS300E

Zoomlion Commercial Mixing Plant, a new generation of industry benchmark, "Lingzhi" concrete mixing plant - commercial mixing plant

Aggregate storage and metering devices are located directly above the mixing main machine, which makes aggregate metering more efficient and increases production efficiency by 10%.

Adapts to a variety of production processes such as mortar wrapping and secondary feeding.

1 First floor steel structure/concrete structure: flexible design, multiple options, and reliable stability of the entire station.

2 Rotary material distribution/storage system: rapid and accurate material distribution and feeding, anti-wear measures are taken internally, and it is more durable.

3 Measuring system: high-end configuration, strong stability, digital signal transmission, and accurate weighing.

High efficiency - maximum benefit

The production efficiency of the whole machine is increased by more than 20%, leading the industry.

Preparation efficiency 31%

Mixing efficiency 15%

Concrete unloading time 50%

High-pressure impact arch breaking & vibration material thinning

Efficient mixing technology

Hydraulic gantry aggregate hopper ensures smooth material unloading

Mixing time: C30 shortened to

One plate of material can be temporarily stored. Storage silo top: reduce aggregate delivery

25s, C50 shortened to 35s.

Prevent splashing and leakage. Delivery link, shorten preparation time.

Precision - Concrete quality assurance

The qualified rate of measurement accuracy exceeds the national standard requirements, ensuring the qualified rate of concrete quality.

·Raw material detection error ≤0.5%

Online detection technology for sand and gravel moisture content

Real-time adjustment of production ratio at 10:30:15 on Tuesday, July 5, all year round

Production measurement

High-precision measurement technology

Caseree can reach 100%

Powder material is not lost Concrete detection accuracy is 100%

Online detection technology for homogeneity

Concrete is homogeneous before it comes out of the pot Intelligent-improving labor efficiency

Improve personnel efficiency, liberate manpower, and realize intelligent management of mixing stations. Manpower

Cost 50%

Accuracy ≥98%

Accuracy

≥90% One machine multiple control technology

Belt deviation monitoring technology

Measuring sensor fault diagnosis technology One person controls 2 to N lines,

24-hour real-time monitoring,

Realize on-the-spot emergency production, save labor costs.

Automatic alarm reminder.

Quickly locate and diagnose faults. Data backup

Belt is normal Yellow warning for belt deviation

Red warning for belt deviation Environmental protection - green and low-carbon development

Achieve low dust, low noise, zero emission, and create an energy-saving and environmentally friendly mixing station. Environmental protection station

Environmental protection overall solution Industry standard

Originator & leader Formulator

More than 2,000 sets of low dust have been implemented

Indoor dust concentration

<5mg/Nm³

Main building comprehensive dust removal system: Main building dust removal belt cleaning conveying technology: Reduce dust material yard intelligent spray system: Material yard dust suppression

Outdoor fog pile dust suppression and haze reduction system: Outdoor dust reduction

·Low noise

Daytime factory boundary noise

<60dB

Powder low-pressure conveying system: Noise-free screw air compressor: 30% noise reduction compared to piston type Ground warehouse batching machine: Small impact, low noise and zero emission

Wastewater Waste residue

Discharge

Sand and gravel separation system: solid-liquid separation Slurry water recovery system: liquid recovery filter press system: slurry water consumption

Intelligent car washing system: mixer truck cleaning

Real-time concentration detection system: slurry water concentration control Automatic water system: alkaline slurry water neutralization
