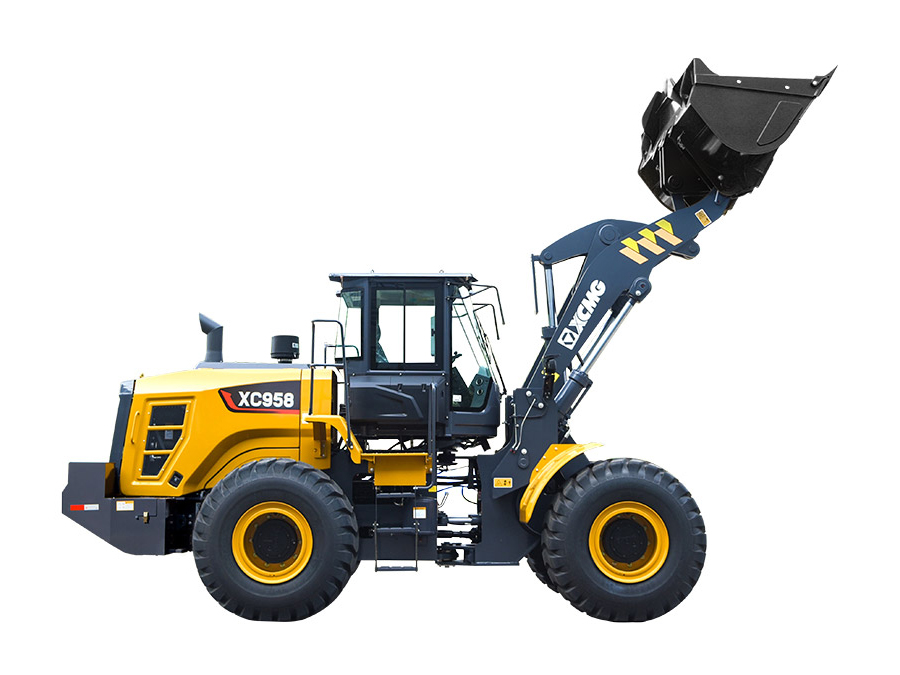

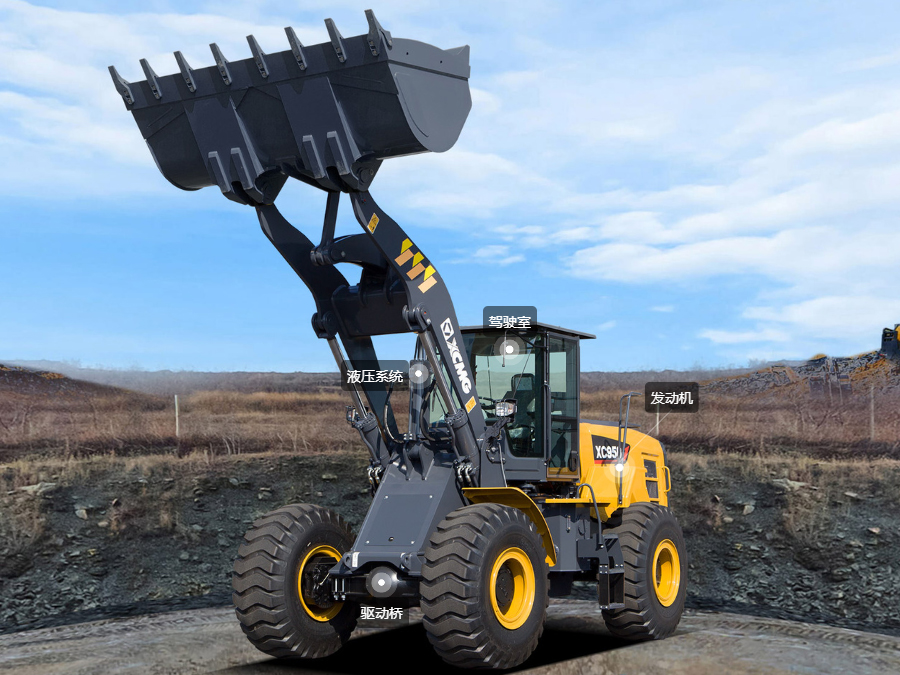

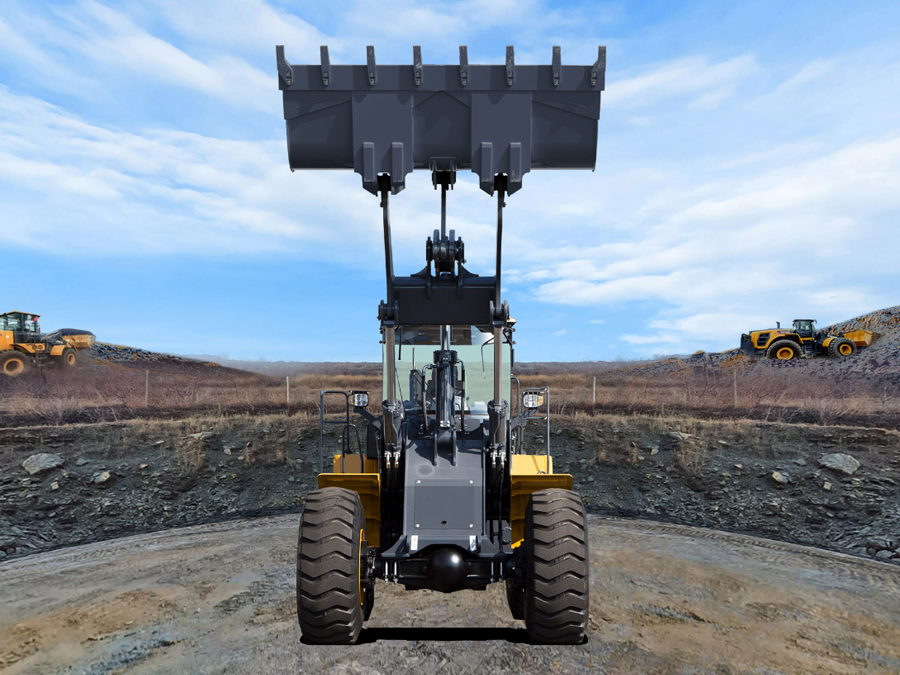

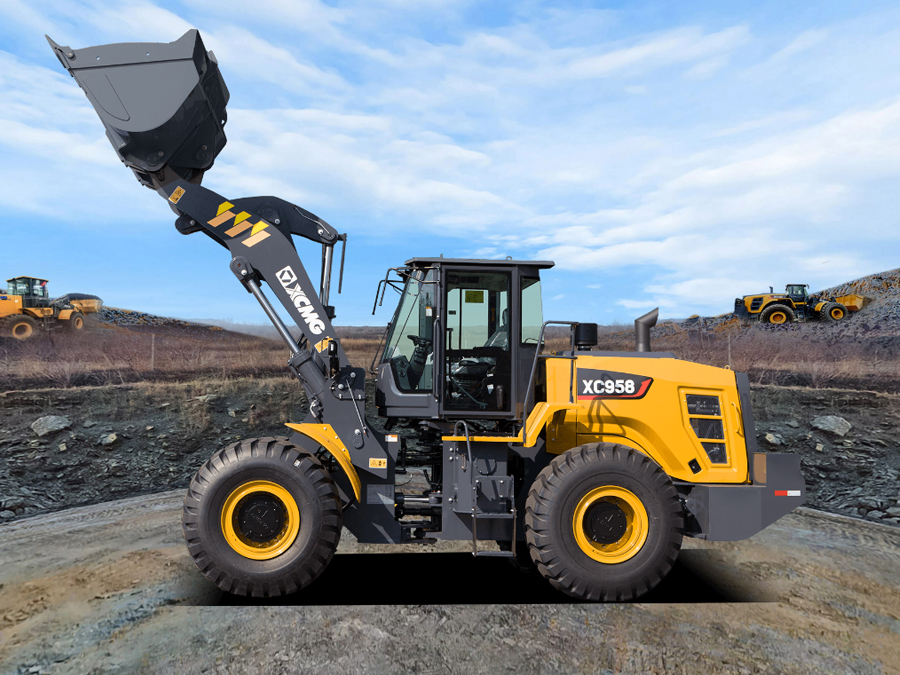

XC958 Series Medium Loader
The XC958 series is equipped with Weichai National IV emission engine, XCMG special torque converter, gearbox, reinforced drive axle (6-ton front axle, 5.5-ton rear axle), efficient and energy-saving hydraulic system, XC9 series micro-pressurized cab, high-end and atmospheric appearance of the whole machine, which is widely used in mines, ports, gravel yards, coal yards, steel mills and other working conditions; especially suitable for loading and unloading operations in gravel yards, mixing stations, coal yards and other working conditions.
Adopting XCMG classic heavy-duty structural platform, long wheelbase and wheelbase centering arrangement (equidistant wheelbase), stable operation and flexibility.
Adopting high-power electronically controlled high-pressure common rail engine, large torque reserve coefficient and strong power.
Standard electronically controlled high-pressure common rail engine, fuel injection is controlled by ECU, high combustion efficiency, more economical and fuel-saving.
According to the characteristics of working conditions, three engine power modes of light load, medium load and heavy load can be selected to maximize fuel saving.
XCMG's special gearbox is perfectly matched with the engine, with strong power and high operating speed; the optional electronically controlled planetary box can further improve work efficiency.
Standard 3.0m³ bucket, optimized bucket shape, easy to cut in, high full bucket rate. 2.5~5.0m³ bucket can be selected according to different materials.

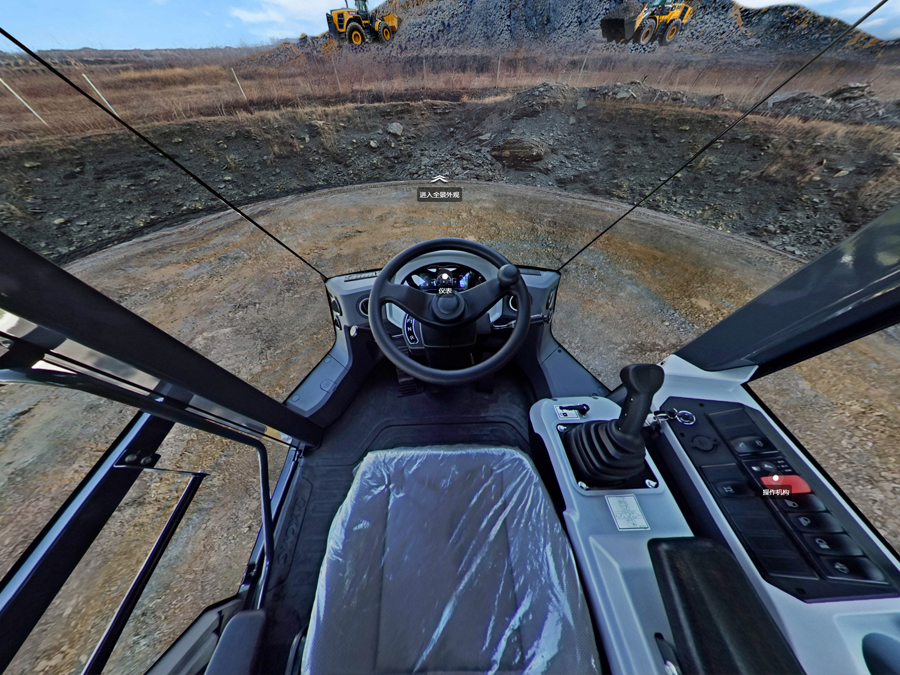

Integral fully enclosed cab, standard air conditioning, storage compartment, cup holder, charging base, all available, noise reduction, dustproof, heat insulation, creating a comfortable, healthy and safe driving environment.

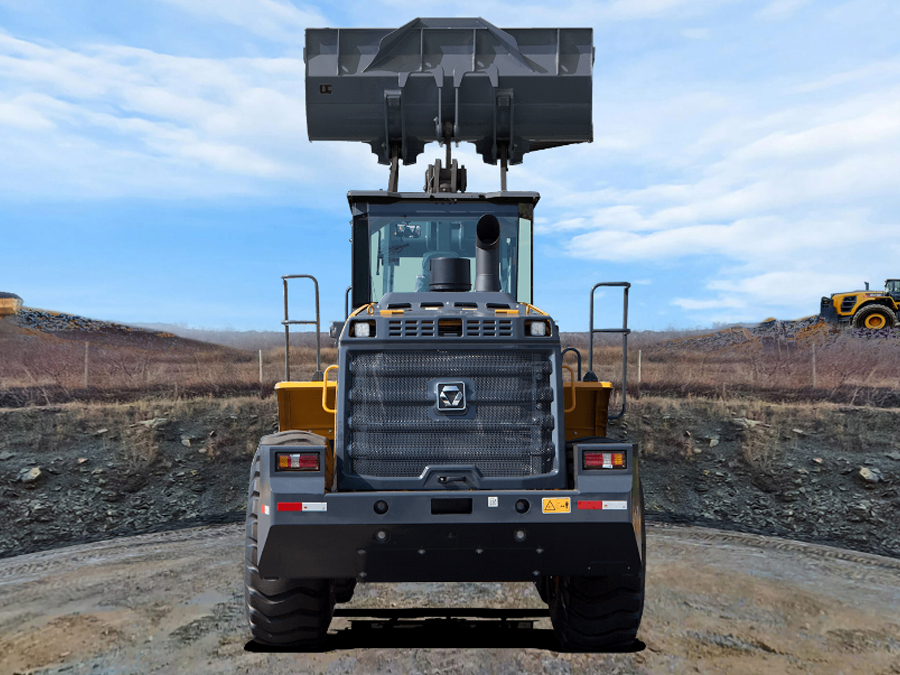

Full-view rear glass, high-mounted rear lights, good sight, safe reversing.
The hood adopts a flip-up large side door structure with a large opening angle, and routine maintenance is within reach.
Item | XC958 | XC9581 | XC958 II |
Rated power (kW) | 170 | ||
Wheelbase (mm) | 3350 | ||
Rated load (kg) | 5500 | 5800 | |
Working mass (kg) | 17400±300 | 18080±300 | |
Unloading height (mm) | 3420 | 3400 | |
Unloading distance (mm) | 1180 | 1200 | |
Overall dimensions (mm) (length x width x height) | 8570X2996X3455 | 8600X2996X3455 |
