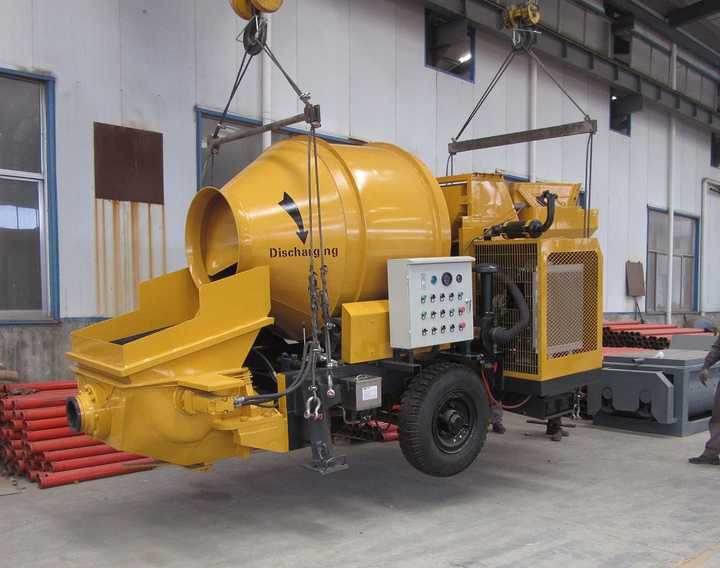

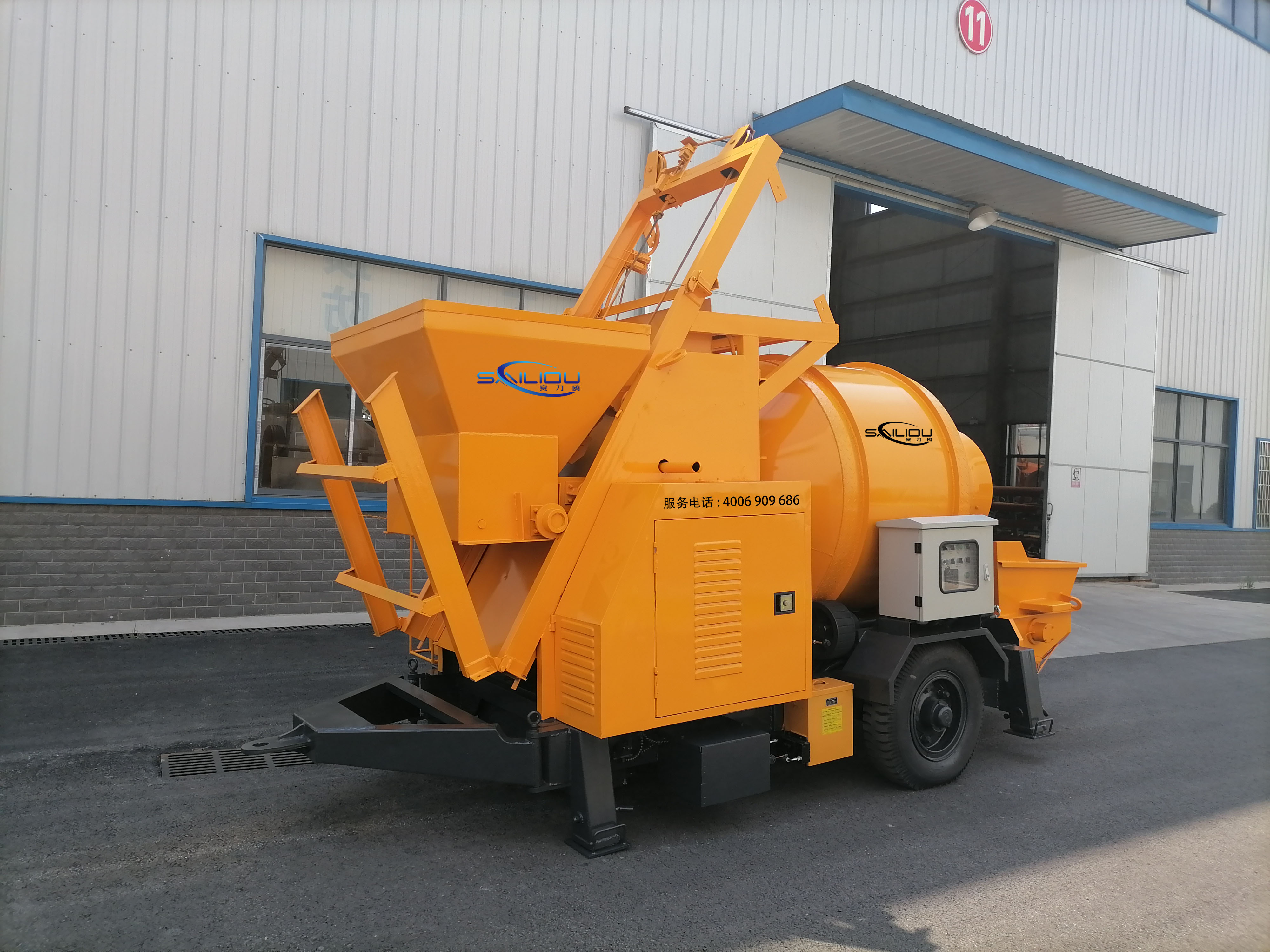

Sailiou Concrete Mixer Small Mobile Cement Mixer Machine

Short Description:

Small Mobile Cement Mixer Machine Portable Concrete Mixer• Compact in design, 3...


Description

Specifications

Small Mobile Cement Mixer Machine  Portable Concrete Mixer
• Compact in design, 36m pump mounted on a 3-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 8.52m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.


Check the function and appearance of concrete pump through road test,engine test according to remanufactured quality standard.Check the concrete pump function through pressure plus waterd ebuggingaccording to remanufactured quality standard.

Main Technical Parameter
Model
HBT90R/18180S
Max. Theoretic Delivery Capacity
75m3/h
Max. Theoretic Delivery Pressure
18 MPa
Concrete Cylinder( Bore× Stroke)
180×1000 mm
Type of Distributing Valve
S Valve
Feeding Hopper Capacity
600 L
Feeding Height
1150 mm
Diameter of Discharging Gate
Φ125 mm
Diameter of Delivery Pipe
Φ125 mm
Power
0180 kW
Power Type
WEICHAI Diesel Engine
Brand of Main Oil Pump
Japanese Kawasaki
Main Cylinder( Bore× Stroke)
180×1000 mm
Capacity of Hydraulic Oil Tank
500 L
Max. Aggregate Size(Pebble/Gravel)
50 mm / 30 mm
Rated Delivery Distance
Vertical
200 m
Horizontal
800 m
Total Weight
7500 kg
Overal Dimension (L×W×H) mm
6800×2200×2200
